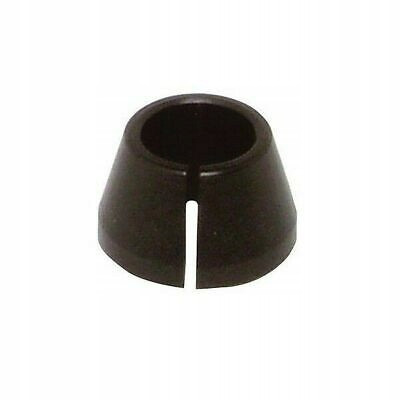

^Makita tulejka zaciskowa 3/8"

• Producent: Makita


• Kod producenta: 763619-3


• Pozycja na schemacie: A05

Zastosowanie:

Makita: DRT50, RT0700C

Lista części od RT0700C

1 452465-6 TOP COVER 1

2 869668-9 RT0700C NAME PLATE 1

3 620040-8 CONTROLLER 1

4 266326-2 TAPPING SCREW 4X18 2

5 687123-7 STRAIN RELIEF 1

6 654542-2 TERMINAL BLOCK 2P 1

7 692021-2 POWER SUPPLY CORD 1.0-2-2.5 1

8 682569-2 CORD GUARD 8-85 1

11 643550-8 BRUSH HOLDER CAP 5-8 2

12 191940-4 CARBON BRUSH CB-411 1

13 140736-0 BRACKET COMPLETE 1

13 C10 643455-2 BRUSH HOLDER 6X9 2

14 651527-9 SWITCH 1

15 633769-7 FIELD 240V 1

015-1 593769-8 FIELD ASS'Y 240V 1

015-1 C10 654100-4 RING TERMINAL 1

015-1 C20 654501-6 CONNECTOR P-1.25 1

16 266340-8 TAPPING SCREW 4X65 2

17 259039-2 SELF LOCK 6 1

18 688174-3 MAGNET SLEEVE 1

018-1 688117-5 MAGNET SLEEVE 1

19 253332-6 THIN WASHER 6 1

20 267756-0 WAVE WASHER 6 1

21 210023-2 BALL BEARING 627DDW 1

022A 681668-7 INSULATION WASHER 1

022-1A 681668-7 INSULATION WASHER 1

022-1B 681668-7 INSULATION WASHER 1

23 515844-0 ARMATURE ASS'Y 240V 1

23 D10 INC. 17-22,24-26

24 240125-0 FAN 55 1

25 961057-5 RETAINING RING S-17 1

26 210301-0 BALL BEARING 6003DDW 1

27 253906-3 WAVE WASHER 26 1

28 140735-2 OUTER HOUSING COMPLETE 1

028-1 140735-2 OUTER HOUSING COMPLETE 1

29 266560-4 TAPPING SCREW 4X40 4

30 452468-0 PUSH BUTTON 1

31 233127-3 COMPRESSION SPRING 7 1

32 256437-1 PIN 4 1

33 763637-1 COLLET CONE 1/4" 1

34 763615-1 COLLET NUT 1

35 265763-7 THUMB SCREW M6X25 1

36 942151-2 SPRING WASHER 6 1

036-1 253428-3 SPRING WASHER 6 1

37 941151-9 FLAT WASHER 6 1

038-1 142403-3 TRIMMER BASE COMPLETE 1

39 941151-9 FLAT WASHER 6 1

40 265792-0 THUMB SCREW M5X35 1

41 227262-7 SPUR GEAR 16 1

42 346392-6 CAM PLATE 1

43 163524-8 LOCK LEVER COMPLETE 1

44 424396-9 RUBBER CAP 1

45 941101-4 FLAT WASHER 5 1

46 252103-8 HEX. LOCK NUT M5-8 1

047-1 454842-8 BASE PROTECTOR 1

48 912112-6 COUNTERSUNK HEAD SCREW M4X10 4

A01 122965-7 STRAIGHT GUIDE ASSEMBLY 1

A01 C10 252649-4 THUMB NUT M6 1

A01 C20 266339-3 CAP SQUARE NECK BOLT M6X20 1

A01 C30 346382-9 GUIDE PLATE 1

A02A 194733-8 DUST NOZZLE SET 1

A02A C10 213022-3 O RING 3 2

A02A C20 265774-2 THUMB SCREW M4X19 1

A03 195559-1 DUST NOZZLE SET 1

A03 C10 265774-2 THUMB SCREW M4X19 1

A04 343577-5 TEMPLET GUIDE 10 1

A05 763619-3 COLLET CONE 3/8" 1

A06 781011-1 WRENCH 22 1

A07 781039-9 WRENCH 13 1

A08A 344364-5 TEMPLET GUIDE 16 1

A09A 122703-7 TRIMMER GUIDE ASS'Y 1

A09A C10 251471-6 - FLAT HEAD SCREW M5 1

A09A C20 265135-6 + COUNTERSUNK HEAD SCREW M4X10 1

A09A C30 265763-7 THUMB SCREW M6X25 1

A09A C40 265764-5 THUMB SCREW M6 1

A09A C50 317788-8 GUIDE HOLDER 1

A09A C60 324378-0 ROLLER 11 1

A09A C70 341136-9 HOOK 1

A09A C80 941151-9 FLAT WASHER 6 1

A10A 195563-0 PLUNGE BASE SET 1

A10A D10 COMPO-PARTS

A11A 195561-4 TILT BASE SET 1

A11A D10 COMP0-PARTS

A11-1A 198985-3 TILT BASE SET 1

A11-2A 198987-9 TILT BASE SET 1

A12A 153489-2 GRIP 36 COMPLETE 1

A13A 195564-8 GUIDE HOLDER SET 1

A13A C10 252649-4 THUMB NUT M6 1

A13A C20 256850-3 ROD 8 2

A13A C30 266339-3 CAP SQUARE NECK BOLT M6X20 1

A14A 831327-5 TOOL BAG 1
