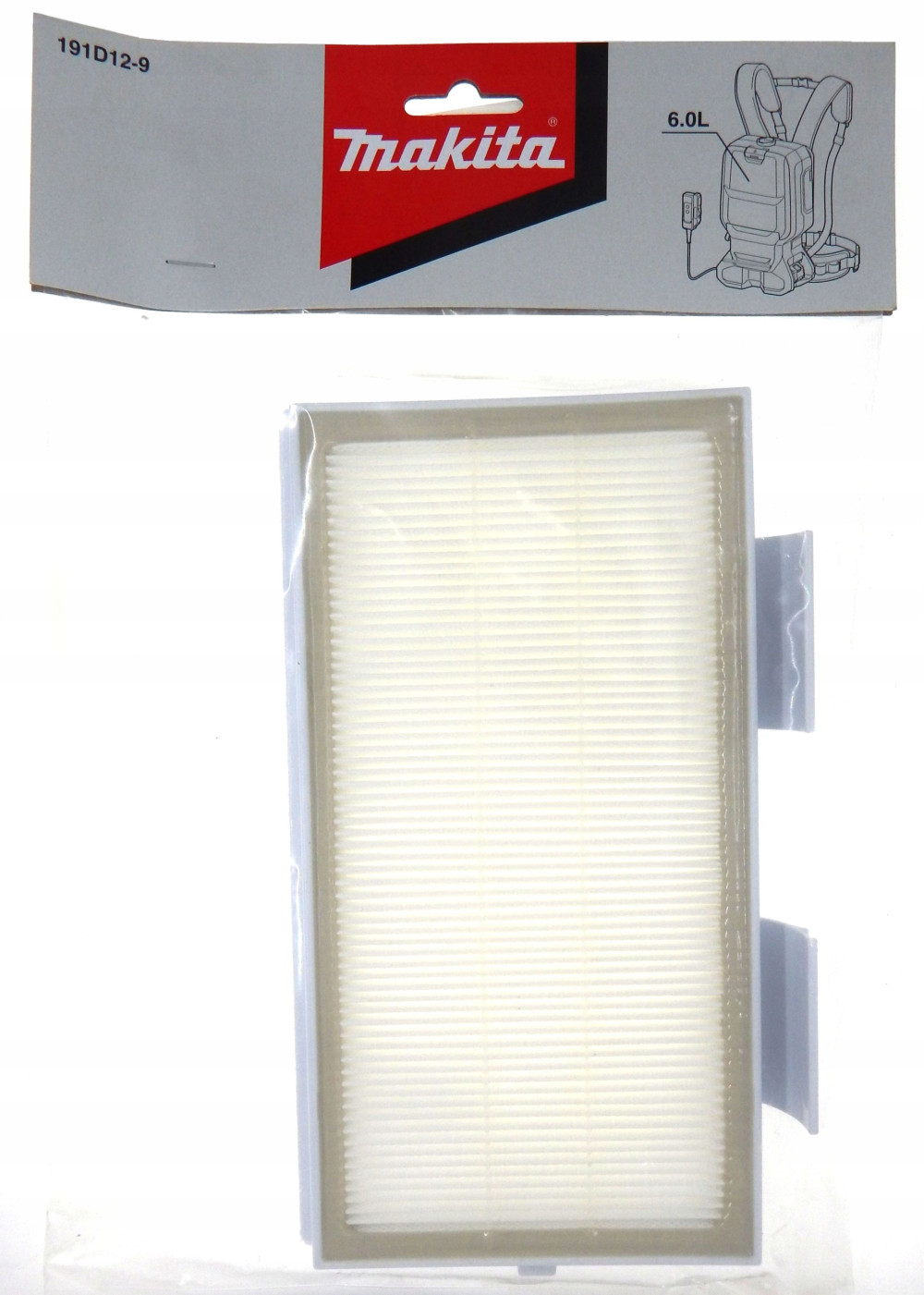

* Makita filtr główny H do akumulatorowego odkurzacza plecakowego DVC660

nowy oryginalny

( MAIN FILTER H SET )

•
  Producent: Makita


•
  Kod EAN: 088381557719


•
  Kod producenta: 191D12-9


•
  Pozycja na schemacie: nr 8 - DVC660

Zastosowanie

akumulatorowy odkurzacz plecakowy

• DVC660


• DVC665

Schemat i spis części do DVC660

pozycja artykułu, nr katalogowy, opis przedmiotu, ilość:

1; 140P97-4  DUST BOX COVER COMPLETE;  1

1; 422536-3  SEAL A;  1

2; 127480-6  LATCH ASSEMBLY;  1

3; 140P91-6  UPPER HOUSING COMPLETE;  1

3; 422534-7  BAND DAMPER D;  1

3; 422550-9  BAND DAMPER A;  1

4; 232389-0  COMPRESSION SPRING 5;  1

5; 459912-8  STOPPER PLATE;  1

6; 135771-1  INLET ASS'Y;  1

7; 213655-4  O RING 56;  1

8; 191D12-9  MAIN FILTER H SET;  1

9; 232588-4  COMPRESSION SPRING 6;  1

10; 140P99-0  LEVER 100 COMPLETE;  1

11; 459913-6  PLATE;  1

12; 234141-2  COMPRESSION SPRING 12;  2

13; 232267-4  LEAF SPRING;  2

14; 687051-6  STRAIN RELIEF;  1

15; 687123-7  STRAIN RELIEF;  1

16; 266326-2  TAPPING SCREW 4X18;  2

17; 422376-9  SUPPORT RING;  1

18; 161804-6  FAN COVER;  1

19; 252268-6  HEX. NUT M6;  1

20; 322407-3  WASHER 6;  1

21; 241851-4  FAN 94;  1

22; 313062-2  FLANGE;  1

23; 266326-2  TAPPING SCREW 4X18;  3

24; 456736-3  FAN BASE;  1

25; 619517-8  ROTOR;  1

26; 629381-9  STATOR;  1

27; 183D13-1  MOTOR HOUSING SET;  1

28; 183D13-1  MOTOR HOUSING SET;  1

29; 266326-2  TAPPING SCREW 4X18;  4

30; 687464-1  SUPPORT;  1

31; 620526-2  CONTROLLER B;  1

32; 266786-8  + PAN HEAD TAPPING SCREW 2X10;  4

33; 422370-1  BAND DAMPER C;  1

34; 424837-5  SUPPORT A;  1

35; 620C52-9  CONTROLLER;  1

36; 644809-6  TERMINAL;  2

37; 140P93-2  LOWER HOUSING COMPLETE;  1

37; 422535-5  BAND DAMPER E;  1

37; 422551-7  BAND DAMPER B;  1

38; 856K43-4  DVC660 NAME PLATE;  1

39; 266326-2  TAPPING SCREW 4X18;  13

40; 183K74-3  SWITCH CASE SET;  1

40; 818F86-4  SWITCH LABEL;  1

45; 687123-7  STRAIN RELIEF;  1

46; 266326-2  TAPPING SCREW 4X18;  2

47; 620525-4  SUB CONTROLLER;  1

48; 183K74-3  SWITCH CASE SET;  1

48; 818F86-4  SWITCH LABEL;  1

49; 266130-9  TAPPING SCREW BIND PT 3X16;  2

50; 699136-6  POWER SUPPLY CORD UNIT;  1

51; 162700-1  HARNESS;  1

52; 265008-3  + FLAT HEAD SCREW K5;  6

A01; 199453-9  HOSE COMPLETE 32-1.0 SET;  1

A02; 166116-2  HOSE BAND;  1

A03; 191C26-2  FILTER BAG SET;  1

A04; 197901-2  FLEXIBLE RUBBER NOZZLE SET EU;  1

A05; 127082-8  NOZZLE ASSEMBLY;  1

A06; 140G19-0  TELESCOPIC PIPE COMPLETE;  1

A07; 140G26-3  BENT PIPE COMPLETE;  1
