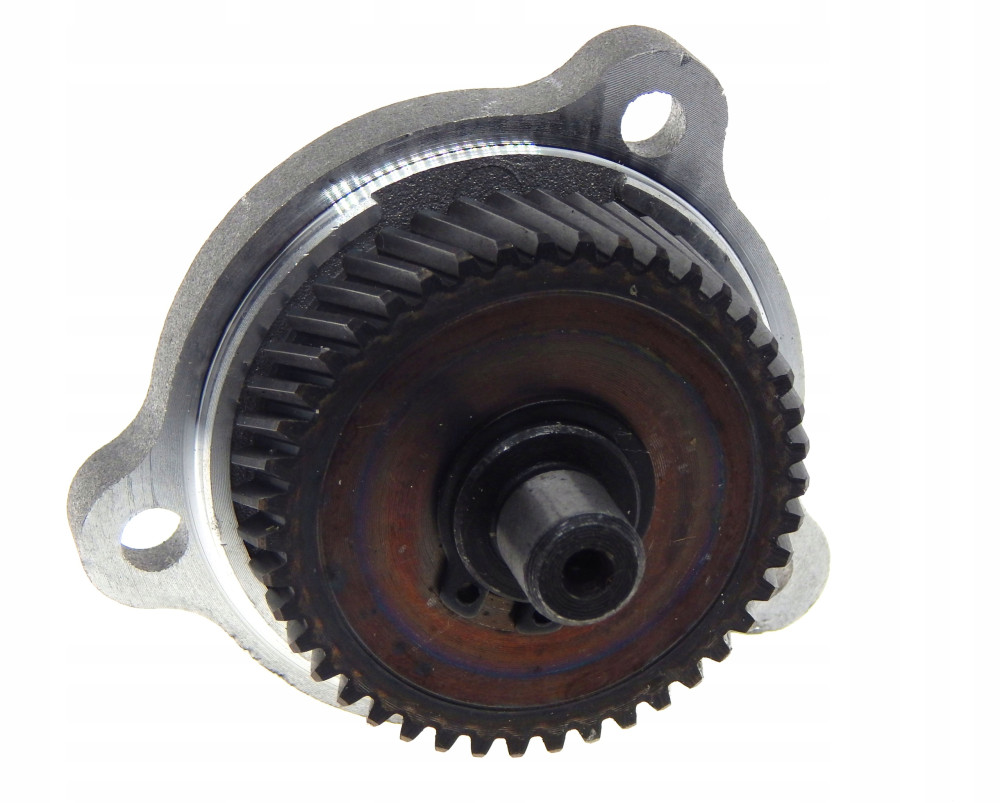

OUTER SHAFT ASSEMBLY
Zastosowanie:
Piła / pilarka stołowa

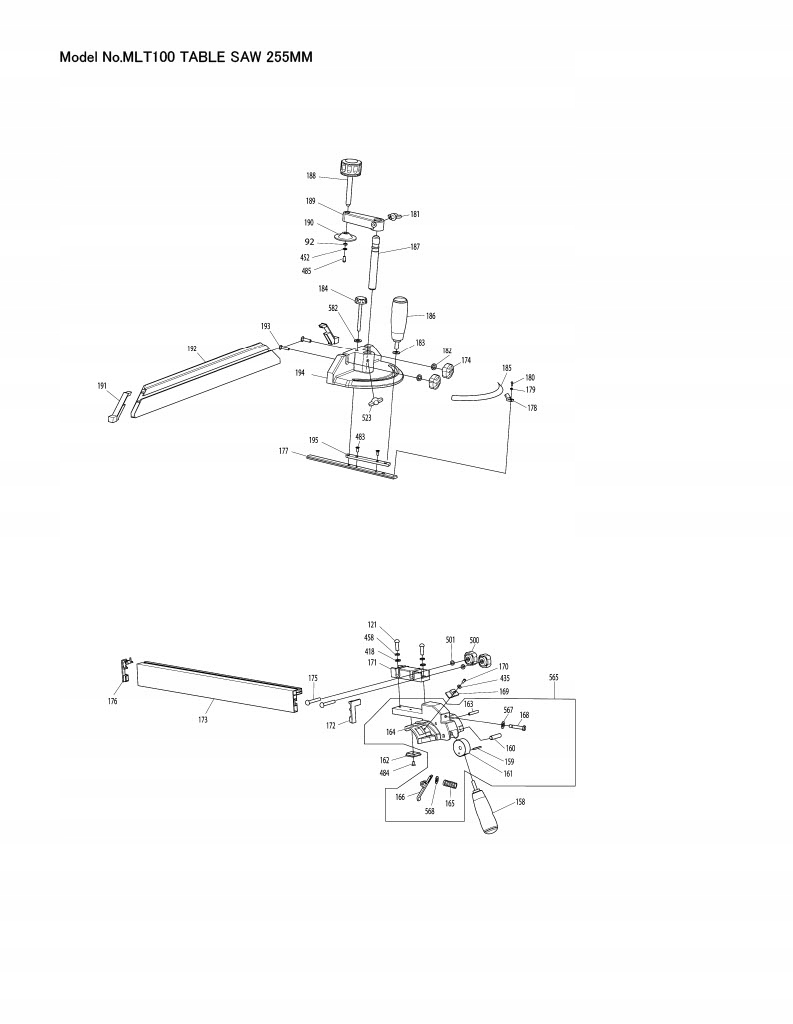

Spis części do MLT100
Pozycja na schemacie, Nr katalogowy, Opis, Ilość
001; JM27000001 HEX BOLT M10X35; 4
002; JM27000002 SPRING WASHER 10; 4
003; JM27000003 FLAT WASHER 10; 4
004; JM27000004 TAPPING SCREW ST3.9X12; 2
005; JM27000005 GRIP (OUTSIDE); 1
006; JM27000006 GRIP (INSIDE); 1
007; JM27000007 HEX LOCK NUT M4; 1
008; JM27000008 SLIDE TABLE BASE; 1
009; JM27000009 FLAT WASHER 4; 2
010; JM27000010 SLIDE TABLE STOPPER; 1
011; JM27000011 PAN HEAD SCREW M4X12; 2
012; JM27000012 SLIDE LIMITER LOWER REAR; 1
013; JM27000013 SPRING WASHER 4; 2
014; JM27000014 SQUARE SLIDER RAIL OUTSIDE; 2
016-1; JM27000016 PAN HEAD SCREW M6X10; 12
017-1; JM27000024 FLAT WASHER 6; 3
018; JM27000018 RACK FOR SLIDE TABLE; 1
019; JM27000019 SLIDE LIMITER LOWER FRONT; 1
020; JM27000020 SQUARE SLIDER RAIL END CAP; 2
021; JM27000021 V-SLIDER RAIL END CAP; 2
022; JM27000022 V-SLIDER RAIL OUTSIDE; 2
024; JM27000024 FLAT WASHER 6; 2
025; JM27000025 PINION GEAR FOR SLIDE TABLE; 1
027; JM27000027 PAN HEAD SCREW M4X10; 2
028; JM27000028 PINION GEAR AXLE; 1
029-1; JM27000029 E SHAPE RETAINING RING 6; 2
031; JM27000031 SLIDE LIMITER LOWER REAR; 1
032; JM27000032 HEX NUT M6; 12
033; JM27000033 HEX BOLT M6X10; 12
034; JM27000034 PLATE NUT M4; 1
035; JM27000035 SLIDING TABLE; 1
036A_; JM27000036 SLIDING TABLE COVER; 1
037; JM27000037 TAPPING SCREW ST3.9X8; 3
038; JM27000038 PAN HEAD SCREW M6X16; 2
039; JM27000039 FIX BRACKET FOR BLADE CASE; 1
040A2; JM00000002 MAIN TABLE A; 1
041-1; JM27000167 PAN HEAD SCREW M5X12; 2
042; JM27000043 KNOB BOLT M6X20;
043; JM27000044 SLIDE SHAFT 330; 2
044A1; JM27000046 REAR EXTENSION TABLE ASSEMBLY; 1
045; JM27000047 WASHER 5 (L); 2
046; JM27000048 SPRING WASHER 5; 2
047-1; JM27000167 PAN HEAD SCREW M5X12; 2
049; JM27000051 HEX LOCK NUT M6; 1
050; JM27000055 WASHER 6 (21.5); 1
051; JM27000056 FIX PLATE; 2
052; JM27000057 LEFT GUARD; 1
053; JM27000058 CONNECTION BOLT; 1
054; JM27000059 PIN 4X12; 1
055; JM27000060 WASHER; 1
056; JM27000061 QUICK FIXING LEVER; 1
057; JM27000062 SIDE PROTECTION PLATE; 1
058; JM27000063 PIN 10X21.5; 1
059; JM27000064 FLAT WASHER 10; 1
060; JM27000065 RING 10; 1
061; JM27000066 FLAT HEAD SCREW M4X8; 6
062A_; JM27000067 TABLE INSERT (PLASTIC); 1
063A_; JM27000068 RIGHT EXTENSION TABLE; 1
064; JM27000069 HEX SOCKET HEAD BOLT M14X20; 2
065; JM27000070 HEX NUT M8; 3
066; JM27000071 SPRING WASHER 8; 3
067; JM27000072 FLAT WASHER 8; 3
068; JM27000073 SQUARE NECK BOLT M8X25; 3
069; JM27000074 FRONT RAIL END CAP RIGHT; 1
070; JM27000075 FRONT RAIL FOR RIGHT EX-TABLE; 1
071; JM27000078 FRONT RAIL END CAP LEFT; 1
072-1; JM27000425 SLIDE PIPE 630; 2
073; JM27000082 FRONT RAIL; 1
074; JM27000085 KNOB NUT M10; 1
077A1; JM00000147 TOOL CASE ASSY; 1
078; JM27000089 SAW DUST OUTLET; 1
079; JM27000090 CUFFS 57-45; 1
080; JM27000091 HEX BOLT M6X65; 1
081; JM27000092 HEX BOLT M6X55; 1
082; JM27000093 CORD HANGER; 2
083; JM27000094 CORD GUARD; 1
084A_; JM27000095 HOOK; 2
085-1; JM27000156 PAN HEAD SCREW M5X20; 6
087; JM27000102 CORD CLAMP; 1
088; JM27000103 TAPPING SCREW ST3.9X16; 2
089; JM27000104 HEX BOLT M10X45; 1
091; JM27000108 UNDER PANEL; 1
092-1; JM27000009 FLAT WASHER 4; 1
093; JM27000110 FRONT PANEL LABEL; 1
094; JM27000111 HEX BOLT M6X16; 2
095; JM27000112 BLADE CASE FIX BRACKET SPACER; 1
096A_; JM27000113 MAKITA LOGO PLATE; 1
097; JM27000114 TAPPING SCREW ST2.9X10; 2
098; JM27000115 SOFT START DEVICE COVER; 1
099; JM27000116 SOFT START DEVICE; 1
100; JM27000117 TAPPING SCREW ST2.9X8; 2
101-1; JM27000118 CORD CLAMP; 1
102; JM27000119 SWITCH BOX COVER; 1
103; JM27000120 SWITCH BOX; 1
104A_; JM27000121 CIRCUIT BREAKER 220-240V; 1
105; JM27000122 LABEL FOR CIRCUIT BREAKER; 1
106; JM27000123 NUT FOR CIRCUIT BREAKER; 1
107A1; JM27000443 ANTI RESTART SWITCH 220-240V; 1
108; JM27000136 PAN HEAD SCREW M4X14; 2
109; JM27000137 HEX SOCKET HEAD BOLT M6X12; 1
110; JM27000138 LOCK HANDLE FOR BLADE ANGLE; 1
111; JM27000139 BLADE ANGLE LOCKING BOLT; 1
112; JM27000140 COMPRESSION SPRING; 1
113; JM27000141 FLAT WASHER 10; 1
114; JM27000142 BLADE ANGLE ADJUSTING RACK; 1
115; JM27000143 SUPPORT PLATE FOR ADJUST RACK; 1
116; JM27000144 FLAT HEAD SCREW M5X8; 4
117A_; JM27000145 RIP FENCE HOLDER; 1
120; JM27000148 BRACKET FOR RIVING KNIFE; 1
121; JM27000149 HEX SOCKET HEAD BOLT M6X20; 2
122-1; JM27000150 RIVING KNIFE; 1
123; JM27000151 FIX PLATE FOR RIVING KNIFE; 1
124; JM27000152 RETAINER PLATE FOR BLADE CASE; 1
125; JM27000153 BLADE CASE LEFT SIDE;
126; JM27000154 COVER PLATE FOR BLADE CASE; 1
127; JM27000155 FLAT WASHER 5; 2
128-1; JM27000156 PAN HEAD SCREW M5X20; 4
129; JM27000157 SLIDE SHAFT FOR BLADE LIFTING; 2
130; JM27000158 SLIDE SCREW FOR BLADE LIFTING ; 1
131; JM27000159 KEY 4X8; 1
132; JM27000160 BRACKET FOR SLIDE SCREW; 1
133; JM27000161 HEX SOCKET HEAD BOLT M5X20; 2
134; JM27000162 BEVEL GEAR FOR BLADE LIFTING; 1
135; JM27000163 RETAINING RING S-10; 1
136; JM27000164 BLADE ANGLE POINTER; 1
137; JM27000165 HANDLE AXLE FOR BLADE LIFTING; 1
138; JM27000166 ADJUSTING GRIP FOR BLADE ANGLE; 1
139; JM27000167 PAN HEAD SCREW M5X12; 1
140-1; JM27000168 CRANK ASSY FOR BLADE LIFTING; 1
141; JM27000169 PAN HEAD STEPPED SCREW M5X37; 1
142; JM27000170 PROTECTION PLATE; 1
143; JM27000171 INNER FLANGE 52; 1
144; JM27000172 H.S.SET SCREW M6X12 WITH GLUE; 1
145; JM27000173 SPRING FOR BLADE CASE BRACKET; 2
146; JM27000174 PAN HEAD SCREW M3X25; 2
147; JM27000175 WASHER 3 (L); 2
148; JM27000176 HEX LOCK NUT M3; 2
149; JM27000177 TAPPING SCREW ST3.9X10; 1
150; JM27000178 PROTECTION PLATE 397X123; 1
151; JM27000179 OUTER FLANGE 52; 1
152; JM27000180 HEX NUT M16; 1
153; JM27000181 BLADE CASE RIGHT SIDE; 1
154; JM27000182 BLADE CASE PLATE; 1
155; JM27000183 HEX LOCK NUT M5; 1
156; JM27000184 SUPPORT BRACKET; 1
158-1; JM27000186 GRIP SCREW M8X10; 1
159; JM27000187 SPRING PIN 4X30; 1
160; JM27000188 KNURLED PIN 8X30; 1
161; JM27000189 ECCENTRIC RING; 1
162; JM27000190 FRICTION PAD; 1
163; JM27000191 KNURLED PIN 5X30; 1
164A_; JM27000192 RIP FENCE BRACKET; 1
165; JM27000193 COMPRESSION SPRING; 1
166; JM27000194 RIP FENCE FIXED PLATE; 1
168; JM27000196 HEX BOLT M6X35; 1
169; JM27000197 POINTER; 1
170; JM27000198 PAN HEAD SCREW M4X8; 1
171; JM27000199 FENCE BRACKET; 1
172; JM27000200 FENCE END CAP; 1
173; JM27000201 FENCE BAR; 1
174; JM27000203 THUMB NUT M6; 2
175; JM27000204 SQUARE NECK BOLT M6X60; 2
176; JM27000205 FENCE END CAP; 1
177; JM27000206 SLIDING BAR; 1
178; JM27000207 POINTER; 1
179; JM27000208 FLAT WASHER 3; 1
180; JM27000209 PAN HEAD SCREW M3X8; 1
181; JM27000210 THUMB SCREW M6X13; 1
182; JM27000211 WASHER 6 (L); 2
183; JM27000212 WASHER 8; 1
184; JM27000213 THUMB SCREW M6X62; 1
185; JM27000214 SCALE LABEL; 1
186-1; JM27000215 GRIP SCREW M8X20; 1
187; JM27000216 VISE ROD; 1
188; JM27000217 THUMB SCREW M10X92; 1
189; JM27000218 VISE ARM; 1
190; JM27000219 VISE PLATE; 1
191; JM27000220 FENCE END CAP; 2
192; JM27000221 FENCE PLATE; 1
193; JM27000222 SQUARE NECK BOLT M6X30; 2
194A_; JM27000223 ANGLE RULE BASE; 1
195; JM27000225 SLIDING BAR SPACER; 1
246; JM23000156 POWER SUPPLY CORD ASSY EURO; 1
247; JM27000292 PAN HEAD SCREW M5X8; 2
248; JM27000293 AIR INLET COVER PLATE; 1
249; JM27000294 BRUSH CAP; 2
250; JM23000123 CARBON BRUSH 2PCS/SET; 1
253; JM27000299 CORD CLAMP; 1
254; JM27000361 RUBBER RING; 1
255-1; JM27000445 BALL BEARING 6001RS; 1
256A_; JM27000302 STATOR ASSY 230V; 1
257; JM27000305 TAPPING SCREW ST4.8X70; 2
258A_; JM27000306 ROTOR(230V); 1
259-1; JM27000446 BALL BEARING 6201RS; 1
260; JM27000313 BAFFLE RING; 1
262; JM27000316 PAN HEAD SCREW M5X35; 4
263; JM27000317 FLAT HEAD SCREW M5X16; 3
264; JM27000318 BEARING BOX; 1
265; JM27000319 BALL BEARING 6003RS; 1
266; JM27000320 RETAINING RING R-35; 1
267; JM27000321 SPINDLE SHAFT 5/8"; 1
268; JM27000323 KEY 5X6.5X16; 1
269; JM27000324 HELICAL GEAR 43; 1
270; JM27000325 RETAINING RING S-16; 1
272; JM27000327 SLIDING TABLE BASE FIX PLATE; 2
277; JM27000332 R-TYPE CABLE CLAMP; 2
278; JM27080019 NAME PLATE; 1
280A_; JM27000333 SCALE LABEL (METRIC); 1
281A_; JM27000335 SCALE LABEL EX-TABLE (METRIC); 1
283A1; JM27000428 SCALE LABEL SL-PIPE (METRIC); 2
284; JM27000339 H.S.SET SCREW M6X20 WITH GLUE; 2
285; JM27000340 BLADE GUARD; 1
286-1; JM27000114 TAPPING SCREW ST2.9X10; 4
287; JM27080020 WARNING LABEL; 1
288; JM27080060 WARNING LABEL; 1
291; JM27000342 CAPACITOR; 1
309A_; JM27000052 UP BLADE GUARD ASSEMBLY (EU TY; 1
310A_; JM27000076 SUB FRONT RAIL ASSEMBLY (MMSCA; 1
311A1; JM27000426 SLIDING BAR A ASSEMBLY (MMSCAL; 1
312A_; JM27000083 FRONT RAIL ASSEMBLY (MMSCALE); 1
313A_; JM27000100 BLADE INNER LING 30.0; 1
314A_; JM27000106 CABINET; 1
315A_; JM27000127 SWITCH ASSEMBLY 1 SWA SOO CAO; 1
316A_; JM27000202 RIP FENCE ASSEMBLY; 1
317A_; JM27000224 MITER GUAGE ASSEMBLY; 1
319-1; JM00000150 MOTOR HOUSING ASSY; 1
320A_; JM27000309 ARMATURE ASSY 230V; 1
321-1; JM27000424 GEAR BOX ASSEMBLY; 1
322; JM27000322 OUTER SHAFT ASSEMBLY; 1
411; JM27000024 FLAT WASHER 6; 12
412; JM27000024 FLAT WASHER 6; 12
414; JM27000024 FLAT WASHER 6; 2
415; JM27000024 FLAT WASHER 6; 2
416; JM27000024 FLAT WASHER 6; 2
417; JM27000024 FLAT WASHER 6; 2
418; JM27000024 FLAT WASHER 6; 2
424; JM27000004 TAPPING SCREW ST3.9X12; 2
426-1; JM27000177 TAPPING SCREW ST3.9X10; 4
427; JM27000004 TAPPING SCREW ST3.9X12; 2
428; JM27000004 TAPPING SCREW ST3.9X12; 6
429; JM27000004 TAPPING SCREW ST3.9X12; 2
430; JM27000004 TAPPING SCREW ST3.9X12; 2
431; JM27000004 TAPPING SCREW ST3.9X12; 2
432; JM27000009 FLAT WASHER 4; 4
433-1; JM27000009 FLAT WASHER 4; 1
434-1; JM27000009 FLAT WASHER 4; 1
435; JM27000009 FLAT WASHER 4; 1
437; JM27000009 FLAT WASHER 4; 2
438; JM27000009 FLAT WASHER 4; 2
439; JM27000009 FLAT WASHER 4; 2
440; JM27000009 FLAT WASHER 4; 1
441-1; JM27000155 FLAT WASHER 5; 4
442; JM27000155 FLAT WASHER 5; 2
444; JM27000155 FLAT WASHER 5; 1
446; JM27000155 FLAT WASHER 5; 4
447; JM27000155 FLAT WASHER 5; 2
448; JM27000155 FLAT WASHER 5; 2
449; JM27000016 PAN HEAD SCREW M6X10; 3
450; JM27000033 HEX BOLT M6X10;
451; JM27000013 SPRING WASHER 4; 4
452; JM27000013 SPRING WASHER 4; 1
453; JM27000013 SPRING WASHER 4; 2
454; JM27000013 SPRING WASHER 4; 2
455; JM27000013 SPRING WASHER 4; 1
457-1; JM27000024 FLAT WASHER 6; 3
458; JM27000017 SPRING WASHER 6; 2
459; JM27000017 SPRING WASHER 6; 2
460; JM27000017 SPRING WASHER 6; 2
461; JM27000017 SPRING WASHER 6; 2
462; JM27000032 HEX NUT M6; 1
463-1; JM27000048 SPRING WASHER 5; 4
464; JM27000048 SPRING WASHER 5; 2
466; JM27000048 SPRING WASHER 5; 4
468; JM27000042 PAN HEAD SCREW M5X10; 2
469; JM27000042 PAN HEAD SCREW M5X10; 2
470; JM27000042 PAN HEAD SCREW M5X10; 2
471-1; JM27000042 PAN HEAD SCREW M5X10; 1
472; JM27000042 PAN HEAD SCREW M5X10; 1
473; JM27000109 WASHER 4 (L); 2
474; JM27000109 WASHER 4 (L); 6
475; JM27000109 WASHER 4 (L); 2
476; JM27000109 WASHER 4 (L); 1
477; JM27000011 PAN HEAD SCREW M4X12; 4
478; JM27000011 PAN HEAD SCREW M4X12; 1
479; JM27000011 PAN HEAD SCREW M4X12; 1
480; JM27000011 PAN HEAD SCREW M4X12; 2
481; JM27000047 WASHER 5 (L); 6
482; JM27000047 WASHER 5 (L); 2
483; JM27000066 FLAT HEAD SCREW M4X8; 2
484; JM27000066 FLAT HEAD SCREW M4X8; 1
485; JM27000027 PAN HEAD SCREW M4X10; 1
486; JM27000027 PAN HEAD SCREW M4X10; 2
487; JM27000027 PAN HEAD SCREW M4X10; 2
488; JM27000027 PAN HEAD SCREW M4X10; 1
489; JM27000037 TAPPING SCREW ST3.9X8; 3
490; JM27000149 HEX SOCKET HEAD BOLT M6X20; 2
491; JM27000149 HEX SOCKET HEAD BOLT M6X20; 2
492; JM27000070 HEX NUT M8; 2
493; JM27000071 SPRING WASHER 8; 2
494; JM27000072 FLAT WASHER 8; 2
495; JM27000073 SQUARE NECK BOLT M8X25; 2
496; JM27000038 PAN HEAD SCREW M6X16; 2
497; JM27000043 KNOB BOLT M6X20; 2
498; JM27000114 TAPPING SCREW ST2.9X10; 2
500; JM27000203 THUMB NUT M6; 2
501; JM27000211 WASHER 6 (L); 2
504-1; JM27000032 HEX NUT M6; 2
505-1; JM27000006 GRIP (INSIDE); 1
506-1; JM27000005 GRIP (OUTSIDE); 1
507; JM27000007 HEX LOCK NUT M4; 1
508; JM27000010 SLIDE TABLE STOPPER; 1
509; JM27000018 RACK FOR SLIDE TABLE; 1
510; JM27000039 FIX BRACKET FOR BLADE CASE; 1
511; JM27000064 FLAT WASHER 10; 1
514; JM27000074 FRONT RAIL END CAP RIGHT; 1
515; JM27000078 FRONT RAIL END CAP LEFT; 1
516; JM27000152 RETAINER PLATE FOR BLADE CASE; 1
517; JM27000159 KEY 4X8; 1
518; JM27000162 BEVEL GEAR FOR BLADE LIFTING; 1
519; JM27000163 RETAINING RING S-10; 1
520; JM27000167 PAN HEAD SCREW M5X12; 1
523; JM27000210 THUMB SCREW M6X13; 1
524; JM27000036 SLIDING TABLE COVER; 1
565; JM00000148 RIP FENCE BRACKET ASSY; 1
567; JM27000024 FLAT WASHER 6; 1
568; JM27000024 FLAT WASHER 6; 1
569; JM00000149 SLIDE RAIL ASSY; 1
570; JM00000154 WAVE WASHER 4; 1
571; JM00000154 WAVE WASHER 4; 1
572; JM00000135 HEX NUT M10; 1
573; JM27000003 FLAT WASHER 10; 1
574; JM27000009 FLAT WASHER 4; 2
575; JM27000013 SPRING WASHER 4; 2
577; JM27000009 FLAT WASHER 4; 2
578; JM00000156 VINYL TUBE; 1
580; JM27000017 SPRING WASHER 6; 2
581; JM27000017 SPRING WASHER 6; 2
582; JM27000024 FLAT WASHER 6; 1
583; JM27000032 HEX NUT M6; 3
584; JM27000155 FLAT WASHER 5; 2
585; JM27000048 SPRING WASHER 5; 2
586; JM27000155 FLAT WASHER 5; 2
587; JM27000048 SPRING WASHER 5; 2
588; JM00000155 CORD CLAMP; 1
589; JM27000183 HEX LOCK NUT M5; 3
590; JM27000317 FLAT HEAD SCREW M5X16; 3
592; JM27000453 O-RING 2.5X1.5; 6
593; JM00000152 CRANK FOR BLADE LIFTING; 1
594; JM00000151 HEX NUT M5; 1
595; JM00000153 GRIP FOR BLADE LIFTING; 1
596; JM27000155 FLAT WASHER 5; 1
597; JM27080108 CAUTION LABEL; 1
598; JM00000157 GROMMET; 1
599; JM00000134 FERRITE RING; 1
A01; JM27000086 PUSH STICK; 1
A02; JM27000087 WRENCH 24; 2
A03; JM27000328 TRIANGLE PLATE; 1
A04; JM27000329 HEX WRENCH 6; 1
A05; JM27000097 SAW BLADE 260X30; 1
