* Makita silnik do dmuchawy akumulatorowej BUB182 DUB182

nowy oryginalny

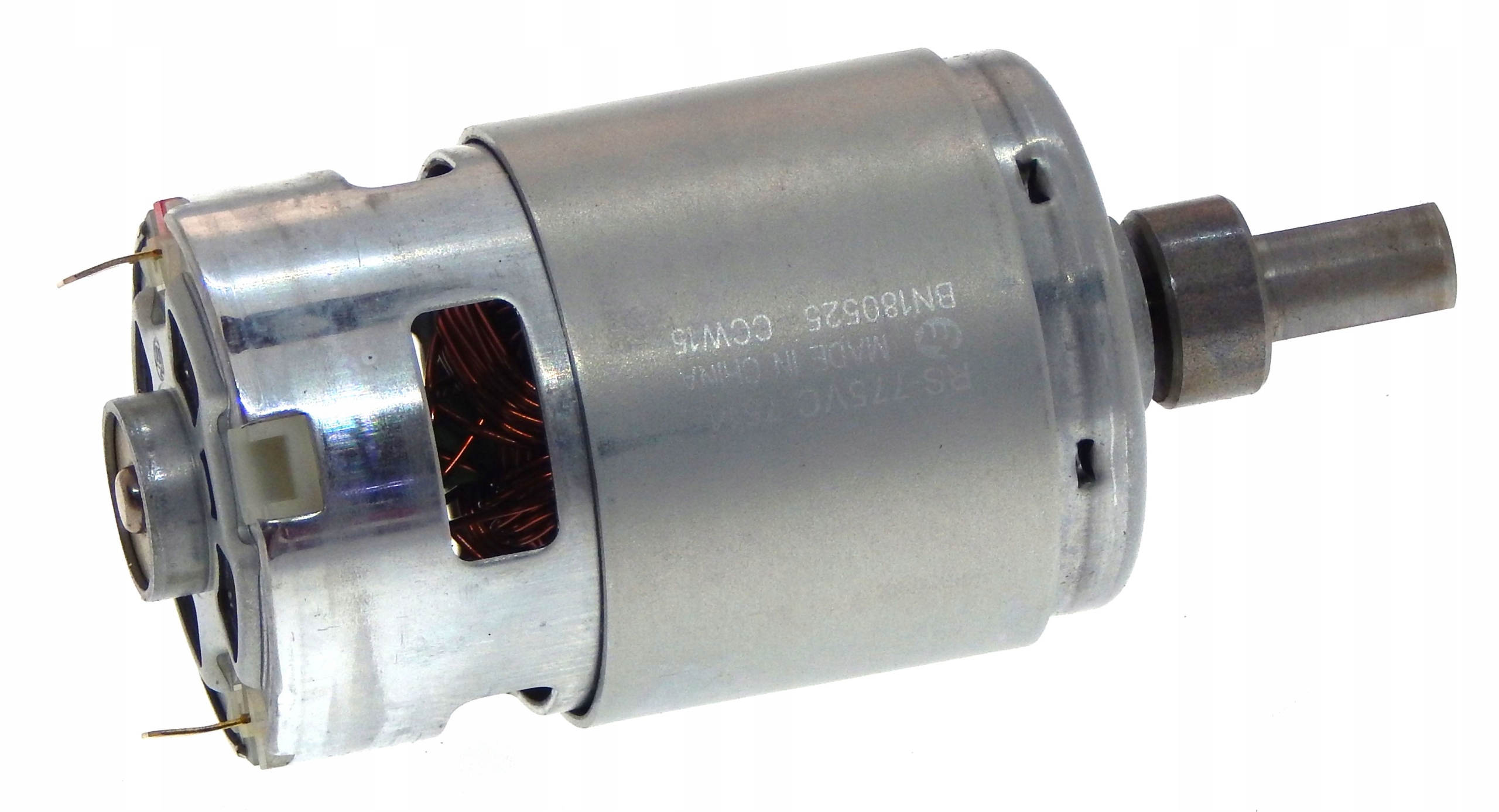

( MOTOR SET (AS-890-MS18-R) )

•
  Producent: Makita


•
  Kod producenta: TP00000113


•
  Pozycja na schemacie: 10 - DUB182

Zastosowanie - akumulatorowa dmuchawa :

• DUB182


• DUB183


• BUB182

Lista części do DUB182

pozycja na schemacie, nr katalogowy, opis produktu, ilość:

1; KW00000210  TAPPING SCREW 4X18;  4

2; TP00000112  FAN HOUSING SET(AS-890FHL-MK-R;  1

3; KW00000220  PAN HEAD SCREW M5X8;  1

4; KW00000160  SPRING WASHER M5;  1

5; KW00000170  FLAT WASHER 5;  1

6; KW00000100  FAN AP-10302;  1

7; KW00000210  TAPPING SCREW 4X18;  3

8; TP00000112  FAN HOUSING SET(AS-890FHL-MK-R;  1

9; KW00000150  MOTOR RUBBER RING A; v 1

10; TP00000113  MOTOR SET (AS-890-MS18-R);  1

11; TP00000083  MOTOR RUBBER RING B;  1

13; TP00000087  MOTOR HOUSING;  1

013-1; TP00000166  MOTOR HOUSING;  1

013-2; TP00000176  MOTOR HOUSING SET;  1

013-3; TP00000211  MOTOR HOUSING SET;  1

14; TP00000084  SPRING;  1

15; TP00000085  PIN;  1

16; TP00000086  DIAL;  1

016-1; TP00000212  DIAL;  1

17; KW00000230  SWITCH;  1

017-1; TP00000165  SWITCH;  1

017-2; TP00000170  SWITCH;  1

017-3; TP00000174  SWITCH;  1

017-4; TP00000204  SWITCH AS-890SW05-MK-R;  1

017-5; TP00000209  SWITCH AS-890SW05A-MK-R;  1

18; TP00000115  HANDLE COVER 18.0V;  1

018-1; TP00000168  HANDLE COVER;  1

018-2; TP00000176  MOTOR HOUSING SET;  1

018-3; TP00000211  MOTOR HOUSING SET;  1

19; KW00000210  TAPPING SCREW 4X18;  6

20; GM00001055  BATTERY HOLDER (C2010185006);  1

020-1; GM00001116  BATTERY HOLDER (C2004185006);  1

21; KW00000200  HEAT SINK AM-10313;  1

22; KW00000270  SPRING WASHER M3;  1

23; TP00000081  SCREW M3X6;  1

A01; 132025-7  NOZZLE ASS'Y;  1

A01; 414145-2  JOINT;  1
