The goods ship from Poalnd and free taxes inside EU.

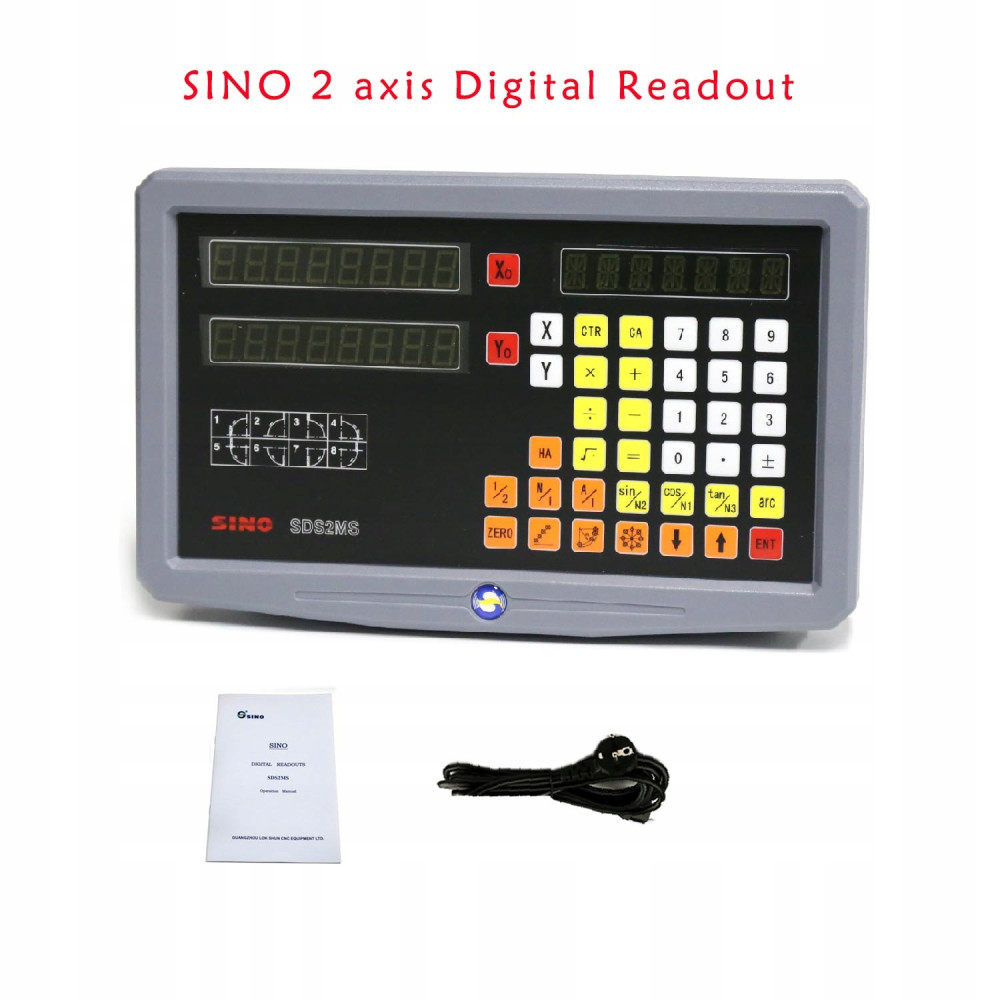

SINO SDS2MS 2 axis digital readout

Package include:

2 Axis Digital readout x 1 piece,

EU Power cord x 1 piece

Manual x 1pc

Install arm x 1pc

Technical Parameters

1.Voltage Range: AC 80V~260V/50HZ~60HZ

2.Power Consumption: 25VA

3.Coordinates: 1/2/3

4.Display: 8 digits display with symbol

5.Frequency number:4X

6.Input Signal: TTL square wave/EIA442A

7.Input Signal frequency: 100KHZ

8.Resolution: 10um ,5um ,2um ,1um , 0.5um,0.1um0.2um

9.Operation Keyboard: Touch keyboard

Digital readout Basic Functions

1:zero clearing

2:reset

3:mm/inch mode

4:ABS/INC

5: 200sets sub datum

6:power off Memory;

7:center of 1/2

8:liner error compensation

9:sleepping mode

10:Clear 200 sets Sdm datum;

11:calculator

12:drilling of circumference

13:drilling of oblique line

14:machining of inclined plane

15:machining of circular arc

16:lathe function(match)

17:Rectangular lumen gradual processing

18:digital filtering (grinder machine )

19.R function

20.Radius/Diameter function (lathe machine )

21.Z+Y sum (lathe machine)
